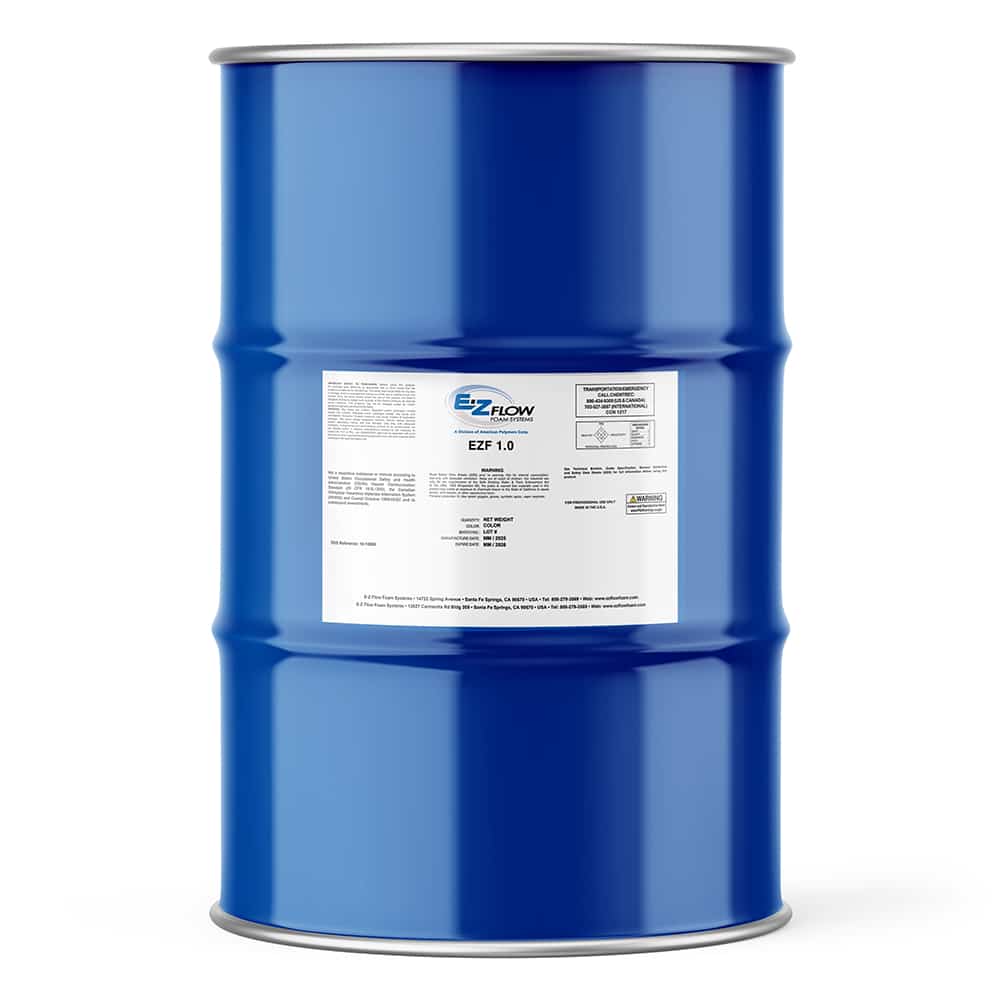

EZF 1.0 VS

The EZF 1.0 VS polyurethane packaging foam systems exhibit slow rise. Our heaviest conventional packaging foam, this is for shipping and largest and heaviest items, requiring extra support that may be too much for our 0.5 lb. and 0.75 lb. foams. This product is designed for crates and very large boxes needed for large, heavy industrial parts. It allows time for forklifts or other machinery to be used to place the items in the box. The 1 lb. density range protects some of the heaviest, largest parts including valves, machine parts, automotive, aviation, electronics, and others. This product does not contain any CFC or HCFC blowing agents.

Ideal for shipping out the following:

Electronics Packaging

Medical Instrument Packaging

Ceramic Packaging

Shock & Vibration Absorption

Void Fill

Pre-Mold Inserts

The EZF 2401-0.40-FS-NATURAL system is designed to absorb shock, such as dropping or piercing the package.

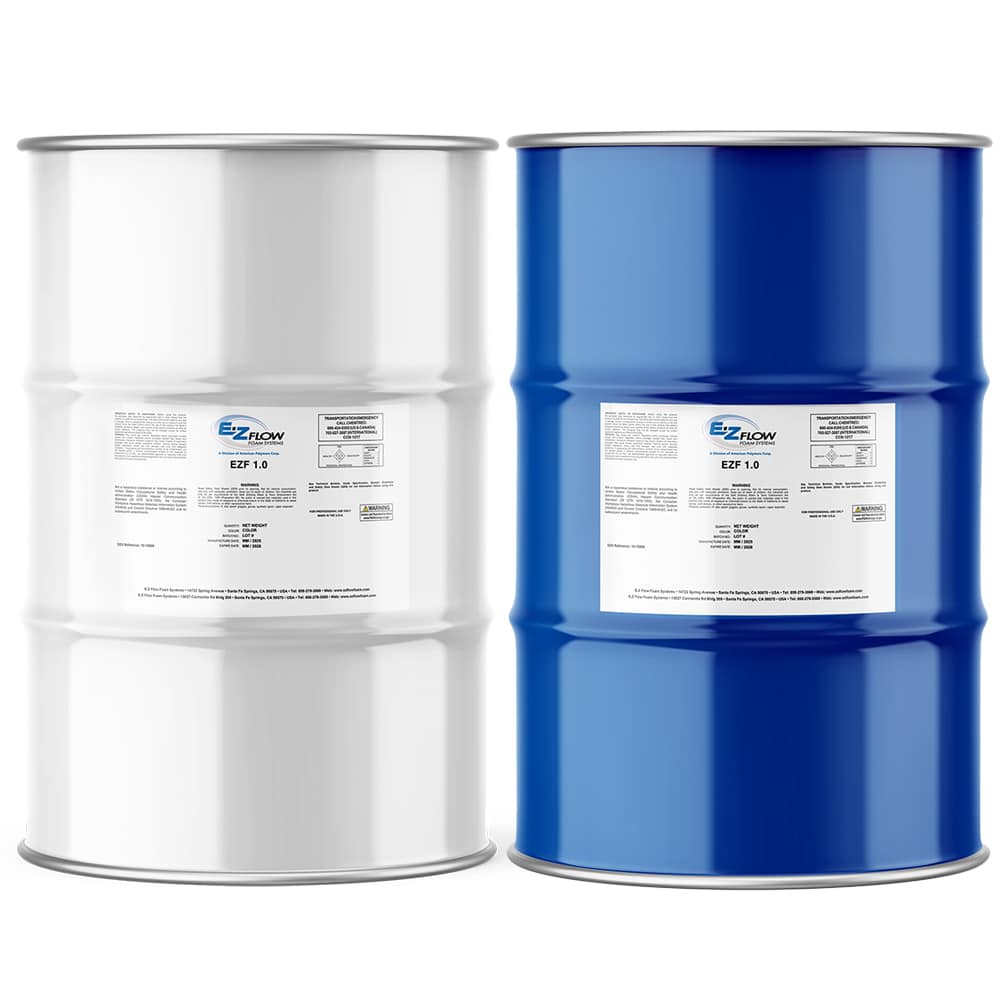

Containers for both Side-A and Side-B components should be kept tightly closed to prevent moisture contamination. Do not reseal if contamination is suspected. To extend teh chemical's life, the use of a dry nitrogen blanket for partial drums is recommended. Both chemicals may be stored at ambient temperatures (50-95 degrees F). For best results, this product should not be allowed to freeze. Do not breathe aerosol or vapors and avoid contact with skin and eyes. Exposure to vapors of MDI (A-side chemical) heated in an open container can be dangerous.

Appropriate literature is available from the E-ZZ Flow which provides information concerning the health and safety precautions that must be observed when handling any of the products listed above. Before working with these products, it is your responsibility to read and become familiar with the available information on the hazards, proper use and handling. This is extremely important and connot be overemphasized. Information is available in several forms, e.g. safety data sheets and product labels. To obtain this information, contact your E-Z Flow Systems representative.

Physical Properties

Typical Values

Cream Time

32 - 40 seconds

Rise Time

155 - 180 seconds

Demold Time

6 - 10 minutes

Density, pdf

1.05 - 1.25 lbs/ft3

Compressive Strength, Parallel

N/A Psi(MPa)

Shear Strength

N/A Psi(MPa)

Closed Cell Content

N/A %

Physical Properties

Typical Values

Machine

E-Z Flow Gen IV
Foam-in-Place System

Air Pressure Range
for 2:1 Pumps operation

95-110PSI

Isocyanate (A) side Initial Temperature Setting

110°F

Polyol Resin (B) side
Inital Temperature Setting

120°F

Different temperatures may be required for best results. Consult. your E-Z Flow Representative for optimization. Temperatures above 140°F should be avoided on A-side.
